0211120000 | Weidmüller

Fuse terminal block, 2 pole, 0.5-10 mm², 500 V, 10 A, 0211120000

Order No.: 50P0240
EAN: 4008190177331
MPN:
0211120000
SAKS 3 Z/6.3X26
Series: SAK-Reihe
0211120000 Weidmüller Fuse Terminals

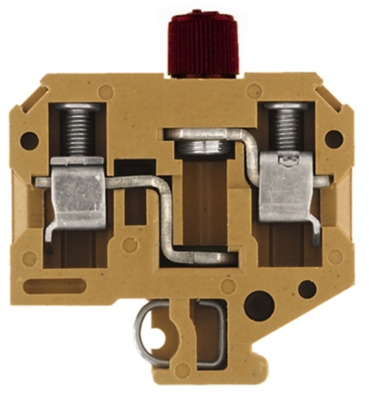

Image may differ
Unit Price (€ / pc.)
63.8316 € *
Available in 6 Days: 100 pcs. - if ordered today
Total Price:
1,276.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
20 pcs.
63.8316 €

Fuse terminal block, 0211120000, Weidmüller

Fuse terminal block, screw connection, fuse element, open on one side, screw connection, 10 mm², 500 V, 10 A, G-Si. 1x1/4, TS 32, medium yellow.

Fuse terminal block consisting of a terminal block base with fuse link carrier.

Technical specifications
Filter Property Value
Version fuse terminal block
Number of terminals 2
Pin number 2 pole
Cable cross-section 0.5-10 mm²
AWG cross-section AWG 22 to 10
Rated Voltage 500 V
Rated surge voltage 6 kV
Rated current 10 A
Degree of soiling 3
Length 61 mm
Width 13 mm
Height 54 mm
Connection screw connection
Colour yellow
Logistics
Property Value
Country of origin HU
Customs tariff number 85369010
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
