0105260000 | Weidmüller
Fuse terminal block, 2 pole, 0.5-4.0 mm², 500 V, 19 A, 0105260000
Unit Price (€ / pc.)
11.9357 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

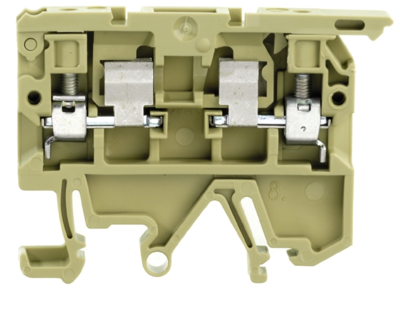

Fuse terminal block, 0105260000, Weidmüller
Fuse terminal block, screw connection, fuse element, open on one side, screw connection, 4 mm², 500 V, 19 A, G-Si. 5x20, TS 35, TS 32, orange
Fuse terminal block consisting of a terminal block base with fuse link carrier.
Technical specifications
| Version | fuse terminal block | |
| Number of terminals | 1 | |
| Pin number | 2 pole | |
| Cable cross-section | 0.5-4.0 mm² | |
| AWG cross-section | AWG 26 to 12 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Rated current | 19 A | |
| Degree of soiling | 3 | |
| Length | 43 mm | |
| Width | 8.1 mm | |
| Height | 58 mm | |
| Connection | screw connection | |
| Colour | orange |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
