2866370000 | Weidmüller

PV generator terminal box, no. of entries: 2, 2.5-6.0 mm², IP65, 2866370000

Order No.: 52P3841
EAN: 4064675604051
MPN:
2866370000
PVN DC 2I 1O 2MPP SPD2R EVO 11
Series: PVN

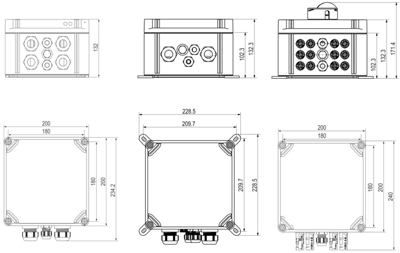

2866370000 Weidmüller Flush-mounted Boxes, Junction Boxes Image 1

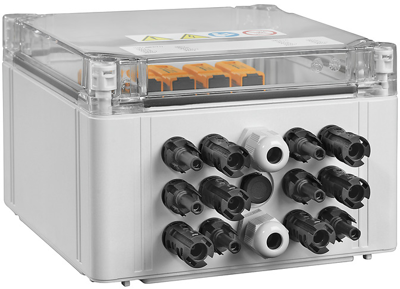

2866370000 Weidmüller Flush-mounted Boxes, Junction Boxes Image 2

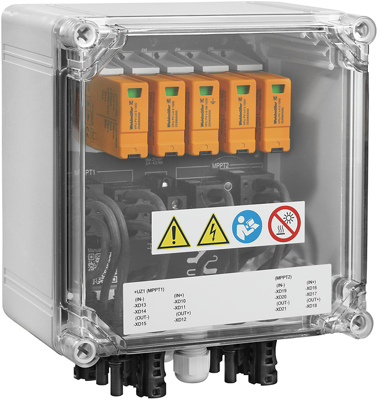

2866370000 Weidmüller Flush-mounted Boxes, Junction Boxes Image 3
Image may differ
Unit Price (€ / pc.)
392.0931 € *
Available in 6 Days: 5 pcs. - if ordered today
Total Price:
392.09 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
392.0931 €

Combiner box, 2866370000, Weidmüller

PV Next combiner box for inverters with 2 MPP trackers is used to protect the DC side of a photovoltaic system. The combiner box protects the inverter against overvoltages and thus complies with the European Directive EN 51543-32. In addition, this product offers the possibility to protect the system against reverse currents and the possibility to combine strings to save cables during installation.

Technical specifications
Insertions 2
Degree of protection (IP) IP65
Cable cross-section 2.5-6.0 mm²
Version PV generator terminal box
Logistics
Country of origin SK
Customs tariff number 85371095
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
