9928890024 | Weidmüller
Power supply, 24 VDC, 1 A, 24 W, 9928890024
Order No.: 53P7481
EAN: 4032248217557
MPN:
9928890024
CP SNT 24W 24V 1A
This item is no longer available.
As an alternative, we recommend the following item:
DC power supply, 22 to 28 V, 1.3 A, 30 W, 2580190000
Order No.: 53P7563
Manufacturer: Weidmüller
per pc. 69.615 € *

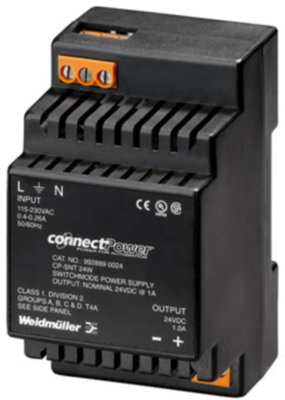

Switching power supply, 9928890024, Weidmüller
This switched-mode power supply is used in a built-in housing in the 24 W and 48 W power classes. It is characterized by the wide input range from 85 VAC to 265 VAC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Input voltage AC | 85-265 VAC, 120-300 VDC | |
| Height | 90.5 mm | |
| Output voltage DC | 24 VDC | |
| efficiency | 78 % | |
| Power | 24 W | |
| Output current | 1 A | |
| Depth | 62.5 mm | |
| Number of outputs | 1 | |
| Width | 52 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Cadmium, lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
