1507190000 | Weidmüller
DC converter, 19.2-28.8 VDC, 230 W, 1 output, 96 to 144 VDC, 93 % efficiency, 1507190000
Order No.: 51P5643
EAN: 4050118315615
MPN:
1507190000
DCDC 24V-120V 230W
Unit Price (€ / pc.)
836.4629 € *
Standard delivery time from the manufacturer is: 13 Weeks

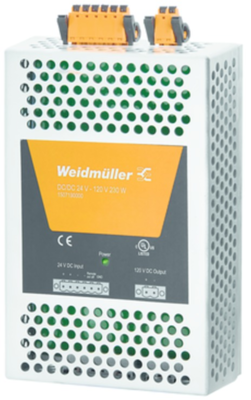

DC/DC converter, 1507190000, Weidmüller
The compact DC/DC converter is designed for applications in automation technology, power supply and power plant technology, traffic system plus mechanical and plant engineering. The DC/DC converter is characterised by its high efficiency and its above-average output data. With status signalling and output voltage which can be shut off, it offers sensible functions for automation technology.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 96 to 144 VDC | |
| Power | 230 W | |
| efficiency | 93 % | |
| Length | 185 mm | |
| Height | 60 mm | |
| Input voltage AC | 19.2-28.8 VDC | |
| Width | 120 mm | |
| Number of outputs | 1 | |
| Output current | 2 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CA |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
