8813200000 | Weidmüller
PUR system bus cable, Cat 5e, 8-wire, 0.128 mm², AWG 26-7, green, 8813200000
Order No.: 53P4933
EAN: 4032248513055
MPN:
8813200000
IE-5CC4x2xAWG26/7-PUR
Unit Price (€ / pc.)
450.6173 € *
Available in 6 Days: 5 pcs. - if ordered today

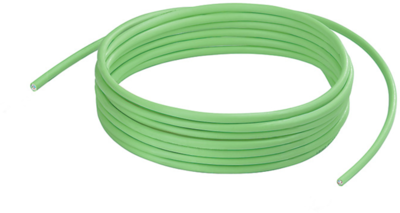

Copper cable, 8813200000, Weidmüller
Copper cable, Flexible, 4x2xAWG 24/1, Cat. 5, PUR, Green.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 6.1 mm | |
| Version | system bus cable | |
| Core insulation material | PE | |
| Halogen free | Yes | |
| Category | Cat 5e | |
| Cable cross-section | 0.128 mm² | |
| Cable material | copper | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Shielding | shielded | |
| Colour | green | |
| Material | PUR | |
| Number of cores | 8 | |
| AWG cross-section | AWG 26-7 | |
| Temperature range (active) | -40 °C to 80 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
