1232620000 | Weidmüller

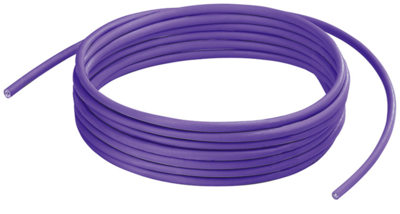

PVC system bus cable, 4-wire, 0.1 mm², AWG 24, purple, 1232620000
Order No.: 50P9160
EAN: 4050118016260
MPN:
1232620000
SAIH-PB-2x0.24(PUR)
Unit Price (€ / mtr.)
7.7945 € *
Standard delivery time from the manufacturer is: 7 Weeks
Bus cable, 1232620000, Weidmüller
Bus line, Number of poles: 2, Shielded: yes, LED: no, Sheath material: PUR, Halogen: no.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24 | |
| Colour | purple | |
| Core insulation material | PE | |
| Temperature range (active) | -40 °C to 70 °C | |
| Halogen free | No | |
| Cable cross-section | 0.1 mm² | |
| Temperature range (unmoved) | -20 °C to 60 °C | |
| Number of cores | 4 | |
| Outer diameter | 7.8 mm | |
| Material | PVC | |
| Version | system bus cable | |
| Shielding | shielded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
