1480100000 | Weidmüller
Receptacle, 1.5-2.5 mm², AWG 16-14, crimp connection, tin-plated, 1480100000
Unit Price (€ / pc.)
0.1583 € *
Available in 6 Days: 12,500 pcs. - if ordered today

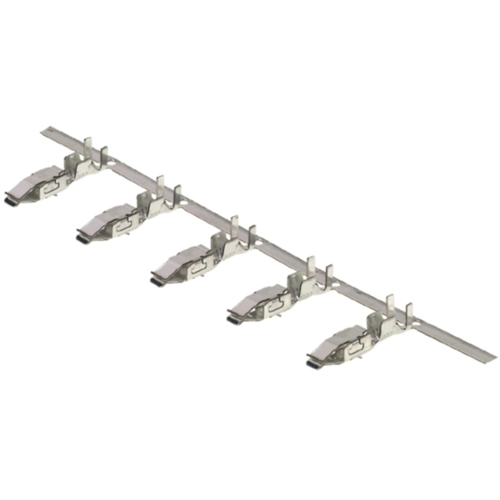

Socket contact, 1480100000, Weidmüller
The 1480100000 is a socket contact. This product enables custom adaptations to the specific requirements of your applications.
Features
- Safe centring of the contacts using the three-segment pin tips
- High contact reliability using four defined contact points
- Locking clasp in the cantilever spring for a secure mount of the contacts in the housing
- Pin contacts with two lengths to implement leading-pin contacts
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | crimp connection | |
| contact surface | tin-plated | |
| AWG cross-section | AWG 16-14 | |
| Contact material | copper alloy | |
| Version | receptacle | |
| Cable cross-section | 1.5-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
