8921150000 | Weidmüller

Relay coupler 4 Form C (NO/NC), 19465 Ω, 6 A, 230 V (AC), 8921150000

Order No.: 53P5234
EAN: 4032248692361
MPN:
8921150000
RCMKITP-I 230VAC 4CO LD
Series: RIDERSERIES RCM

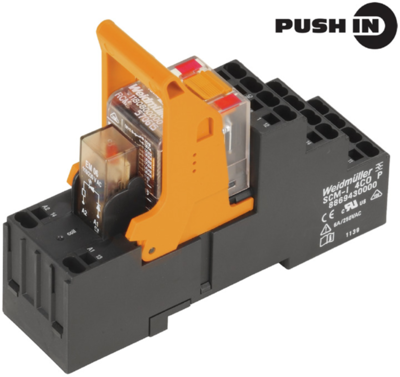

8921150000 Weidmüller Coupling Relays Image 1
8921150000 Weidmüller Coupling Relays Image 2
Image may differ
Unit Price (€ / pc.)
24.2165 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
24.22 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
24.2165 €

Relay coupler, 8921150000, Weidmüller

Relay coupler, 230 VAC, LED red, 4 changeover contacts with test button (AgNi 90/10), 240 VAC, 6 A, PUSH IN, Relay coupler as mounted assembly consisting of plug-in relay and plug-in socket. Control and load circuit are galvanically isolated.

Technical specifications
Version relay coupler
Status display LED, red
Contact material AgNi
Contact type 4 Form C (NO/NC)
Degree of protection (IP) IP20
Coil resistance 19465 Ω
Connection push-in clamp
Rated voltage (AC) 230 V
Rated current 6 A
Logistics
Customs tariff number 85364900
Country of origin RO
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
