8921130000 | Weidmüller
Relay coupler 4 Form C (NO/NC), 192 Ω, 6 A, 24 V (AC), 8921130000
Order No.: 53P5232
EAN: 4032248692347
MPN:
8921130000
RCMKITP-I 24VAC 4CO LD
Series: RIDERSERIES RCM
Unit Price (€ / pc.)
24.9900 € *
Available in 6 Days: 50 pcs. - if ordered today

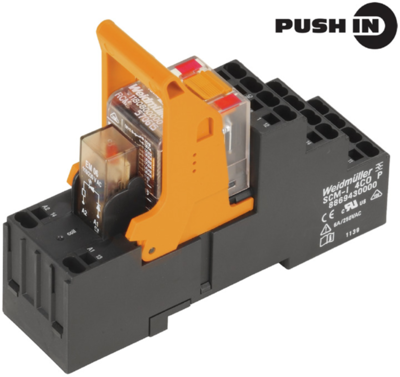

Relay coupler, 8921130000, Weidmüller
Relay coupler, 24 VAC, LED red, 4 changeover contacts with test button (AgNi 90/10), 240 VAC, 6 A, PUSH IN, Relay coupler as mounted assembly consisting of plug-in relay and plug-in socket. Control and load circuit are galvanically isolated.
Technical specifications
| Degree of protection (IP) | IP20 | |
| Rated current | 6 A | |
| Rated voltage (AC) | 24 V | |
| Version | relay coupler | |
| Connection | push-in clamp | |
| Contact type | 4 Form C (NO/NC) | |
| Contact material | AgNi | |
| Coil resistance | 192 Ω | |
| Status display | LED, red |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85364900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
