8897190000 | Weidmüller
Relay coupler 1 Form C (NO/NC), 1440 Ω, 16 A, 24 V (DC), 8897190000
Order No.: 53P5166
EAN: 4032248646968
MPN:
8897190000
RCIKITP 24VDC 1CO LD/PB
Series: RIDERSERIES RCI
Unit Price (€ / pc.)
21.0868 € *
Standard delivery time from the manufacturer is: 2 Weeks

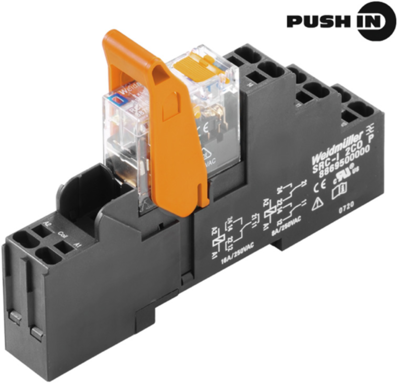

Relay coupler, 8897190000, Weidmüller
Relay coupler, 24 VDC, LED green, Free-wheeling diode, 1 changeover contact with test button (AgNi 90/10), 250 VAC, 16 A(1, PUSH IN, Relay coupler as mounted assembly consisting of plug-in relay and plug-in socket. Control and load circuit are galvanically isolated.
Technical specifications
| Status display | LED, green | |
| Rated voltage (DC) | 24 V | |
| Connection | push-in clamp | |
| Rated current | 16 A | |
| Contact material | AgNi | |
| Contact type | 1 Form C (NO/NC) | |
| Version | relay coupler | |
| Degree of protection (IP) | IP20 | |
| Coil resistance | 1440 Ω |
Download
Logistics
| Customs tariff number | 85364900 |
| Country of origin | RO |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
