8881600000 | Weidmüller
Relay coupler 1 Form C (NO/NC), 32500 Ω, 16 A, 230 V (AC), 8881600000
Order No.: 53P5148
EAN: 4032248631858
MPN:
8881600000
RCIKIT 230VAC 1CO LD/PB
Series: RIDERSERIES RCI
Unit Price (€ / pc.)
22.5981 € *
Standard delivery time from the manufacturer is: 2 Weeks

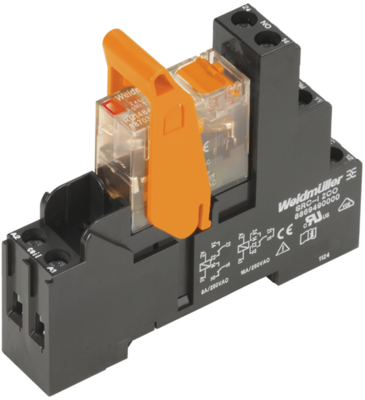

Relay coupler, 8881600000, Weidmüller
Relay coupler, 230 VAC, LED red, 1 changeover contact with test button (AgNi 90/10), 250 VAC, 16 A(1, Screw connection, Relay coupler as mounted assembly consisting of plug-in relay and plug-in socket. Control and load circuit are galvanically isolated.
Technical specifications
| Degree of protection (IP) | IP20 | |
| Rated current | 16 A | |
| Rated voltage (AC) | 230 V | |
| Version | relay coupler | |
| Connection | screw connection | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgNi | |
| Coil resistance | 32500 Ω | |
| Status display | LED, red |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85364900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
