8798620000 | Weidmüller
Relay coupler 1 Form C (NO/NC), 1440 Ω, 16 A, 24 V (DC), 8798620000
Unit Price (€ / pc.)
20.2419 € *
Standard delivery time from the manufacturer is: 2 Weeks

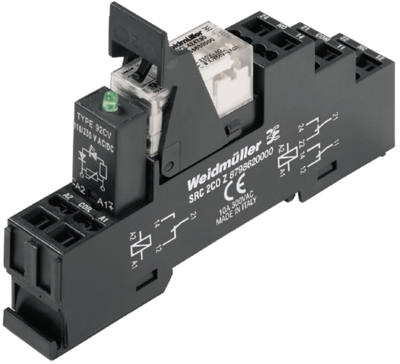

Relay coupler, 8798620000, Weidmüller
Relay coupler, 24 VDC, LED green, Free-wheeling diode, 1 changeover contact (AgNi 90/10), 250 VAC, 16 A, Tension clamp connection, Relay coupler as mounted assembly consisting of plug-in relay and plug-in socket. Control and load circuit are galvanically isolated.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 24 V | |
| Status display | LED, green | |
| Connection | spring-clamp connection | |
| Degree of protection (IP) | IP20 | |
| Contact material | AgNi | |
| Coil resistance | 1440 Ω | |
| Product type | relay coupler | |
| Contact type | 1 Form C (NO/NC) | |
| Rated current | 16 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | lead, 4,4'-isopropylidenediphenol |
| Date of RoHS guidelines | 3/31/15 |
