2063180000 | Weidmüller
Relay coupler 2 Form C (NO/NC), 32500 Ω, 8 A, 230 V (AC), 2063180000
Order No.: 53P0343
EAN: 4050118414639
MPN:
2063180000
RCIKIT 230VAC 2CO LD/V
Series: RIDERSERIES RCI
Unit Price (€ / pc.)
26.6084 € *
Standard delivery time from the manufacturer is: 1 Week

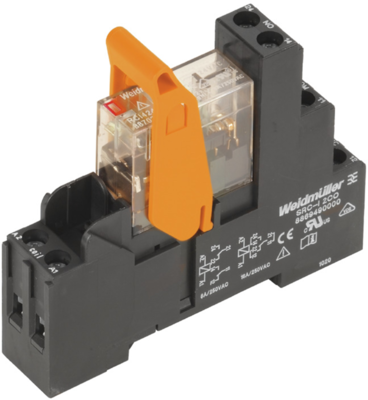

Relay coupler, 2063180000, Weidmüller
Relay coupler, 230 VAC, LED red, Varistor, 2 changeover contacts (AgNi 90/10), 250 VAC, 8 A, Screw connection, Relay coupler as mounted assembly consisting of plug-in relay and plug-in socket. Control and load circuit are galvanically isolated.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Status display | LED, red | |
| Connection | screw connection | |
| Degree of protection (IP) | IP20 | |
| Rated voltage (AC) | 230 V | |
| Contact material | AgNi | |
| Coil resistance | 32500 Ω | |
| Product type | relay coupler | |
| Contact type | 2 Form C (NO/NC) | |
| Rated current | 8 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
