1542530000 | Weidmüller

Relay coupler 4 Form C (NO/NC), 160 Ω, 5 A, 24 V (AC), 1542530000

Order No.: 51P6249
EAN: 4050118347265
MPN:
1542530000
DRMKIT 24VAC 4CO LD/PB
Series: D-SERIES DRM

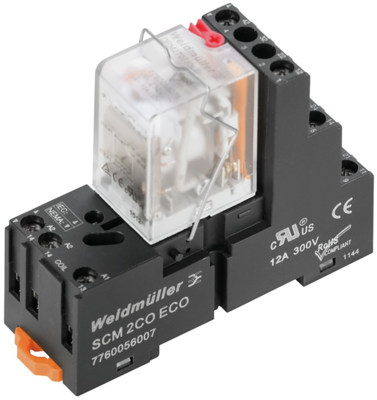

1542530000 Weidmüller Coupling Relays Image 1

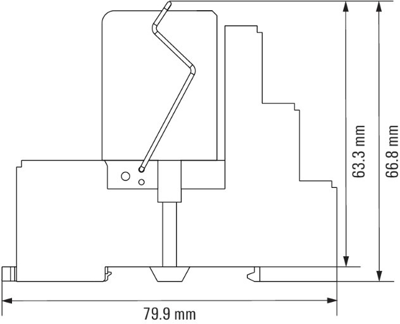

1542530000 Weidmüller Coupling Relays Image 2
Image may differ
Unit Price (€ / pc.)
14.1848 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
14.18 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
14.1848 €

Relay coupler, 1542530000, Weidmüller

Relay coupler, 24 VAC, LED red, 4 changeover contacts with test button (AgNi 0.15 µm Au), 250 VAC, 5 A, Screw connection, Relay coupler as mounted assembly consisting of plug-in relay and plug-in socket. Control and load circuit are galvanically isolated.

Technical specifications
Connection screw connection
Degree of protection (IP) IP20
Rated voltage (AC) 24 V
Contact material AgNi
Status display LED, red
Rated current 5 A
Coil resistance 160 Ω
Contact type 4 Form C (NO/NC)
Product type relay coupler
Logistics
Customs tariff number 85364190
Country of origin CN
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
