1542360000 | Weidmüller

Relay coupler 2 Form C (NO/NC), 650 Ω, 10 A, 24 V (DC), 1542360000

Order No.: 51P6234
EAN: 4050118347234
MPN:
1542360000
DRMKIT 24VDC 2CO LD
Series: D-SERIES DRM

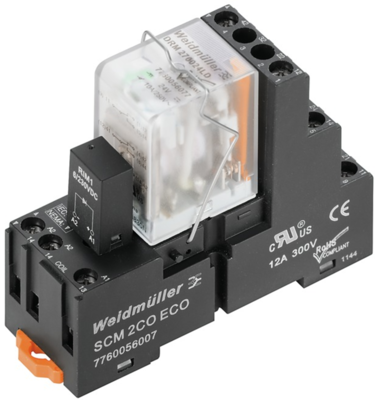

1542360000 Weidmüller Coupling Relays Image 1
1542360000 Weidmüller Coupling Relays Image 2
Image may differ
Unit Price (€ / pc.)
13.09 € *
Available in 6 Days: 50 pcs. - if ordered today
Total Price:
13.09 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
13.09 €

Relay coupler, 1542360000, Weidmüller

Relay coupler, 24 VDC, LED green, Free-wheeling diode, 2 changeover contacts (AgNi 0.15 µm Au), 250 VAC, 10 A, Screw connection, Relay coupler as mounted assembly consisting of plug-in relay and plug-in socket. Control and load circuit are galvanically isolated.

Technical specifications
Filter Property Value
Rated current 10 A
Contact material AgNi
Degree of protection (IP) IP20
Rated voltage (DC) 24 V
Status display LED, green
Coil resistance 650 Ω
Contact type 2 Form C (NO/NC)
Connection screw connection
Product type relay coupler
Logistics
Property Value
Country of origin RO
Customs tariff number 85364190
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
