1398110000 | Weidmüller
Relay coupler 4 Form C (NO/NC), 19465 Ω, 6 A, 230 V (AC), 1398110000
Order No.: 51P2873
EAN: 4050118199451
MPN:
1398110000
RCMKITP-I 230VAC 4CO AU
Series: RIDERSERIES RCM
Unit Price (€ / pc.)
29.6667 € *
Standard delivery time from the manufacturer is: 2 Weeks

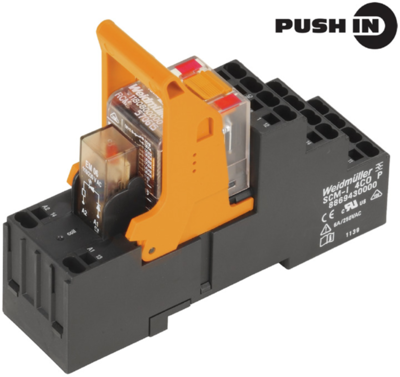

Relay coupler, 1398110000, Weidmüller
Relay coupler, 230 VAC, LED red, 4 changeover contacts with test button (AgNi 5µm Au), 240 VAC, 6 A, PUSH IN, Relay coupler as mounted assembly consisting of plug-in relay and plug-in socket. Control and load circuit are galvanically isolated.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Status display | LED, red | |
| Connection | push-in clamp | |
| Degree of protection (IP) | IP20 | |
| Rated voltage (AC) | 230 V | |
| Contact material | AgNi | |
| Coil resistance | 19465 Ω | |
| Product type | relay coupler | |
| Contact type | 4 Form C (NO/NC) | |
| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
