1398090000 | Weidmüller
Relay coupler 4 Form C (NO/NC), 777 Ω, 6 A, 24 V (DC), 1398090000
Order No.: 51P2872
EAN: 4050118199512
MPN:
1398090000
RCMKITP-I 24VDC 4CO AU
Series: RIDERSERIES RCM
Unit Price (€ / pc.)
28.4767 € *
Standard delivery time from the manufacturer is: 2 Weeks

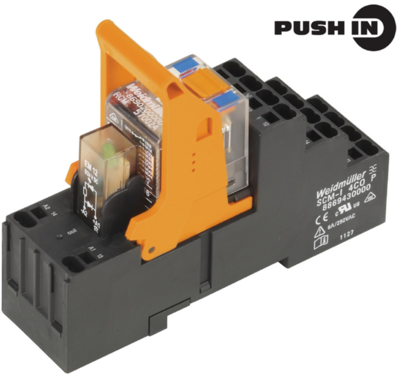

Relay coupler, 1398090000, Weidmüller
Relay coupler, 24 VDC, LED green, Free-wheeling diode, 4 changeover contacts with test button (AgNi 5µm Au), 240 VAC, 6 A, PUSH IN, Relay coupler as mounted assembly consisting of plug-in relay and plug-in socket. Control and load circuit are galvanically isolated.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 24 V | |
| Status display | LED, green | |
| Connection | plug-in connection | |
| Degree of protection (IP) | IP20 | |
| Contact material | AgNi | |
| Coil resistance | 777 Ω | |
| Product type | relay coupler | |
| Contact type | 4 Form C (NO/NC) | |
| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
