1122770000 | Weidmüller
Relay coupler 1 Form C (NO/NC), 6 A, 24 V (DC), 1122770000
Unit Price (€ / pc.)
18.4450 € *
Available: 9 pcs.
Available in 6 Days: 50 pcs. - if ordered today
Total Price:
18.45 € *
Price list
Quantity
Price per unit*
1 pcs.
18.4450 €
10 pcs.
16.9694 €
50 pcs.
15.6128 €
100 pcs.
14.2086 €
*incl. VAT plus shipping costs
Subject to prior sale

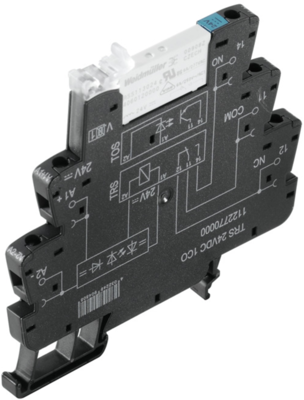

Relay coupler, 1122770000, Weidmüller
Relay coupler, 24 VDC ±20 %, LED green, Free-wheeling diode, Reverse polarity protection, 1 changeover contact (AgNi), 250 VAC, 6 A, Screw connection, Relay coupler as mounted assembly consisting of plug-in relay and plug-in socket. Control and load circuit are galvanically isolated.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 24 V | |
| Status display | LED, green | |
| Connection | screw connection | |
| Degree of protection (IP) | IP20 | |
| Contact material | AgNi | |
| Product type | relay coupler | |
| Contact type | 1 Form C (NO/NC) | |
| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
