1211100000 | Weidmüller

Pin contact insert, 8, 24 pole, equipped, screw connection, with PE contact, 1211100000

Order No.: 50P8770
EAN: 4008190181703
MPN:
1211100000
HDC HE 24 MS
Series: HDC - Einsatz

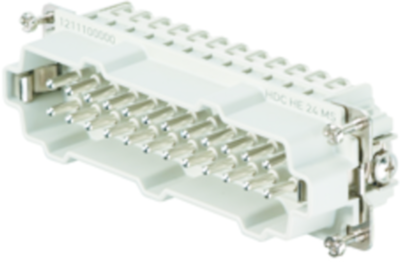

1211100000 Weidmüller Contact Inserts
Image may differ
Unit Price (€ / pc.)
18.4212 € *
Available in 6 Days: 5 pcs. - if ordered today
Total Price:
18.42 € *
Price list
Quantity
Price per unit*
1 pcs.
18.4212 €
10 pcs.
16.9456 €
50 pcs.
15.4224 €
100 pcs.
13.8754 €
*incl. VAT plus shipping costs
Subject to prior sale

Contact insert, 1211100000, Weidmüller

The 1211100000 insert enables efficient signal transmission of up to 24 contacts at maximum 16 A and 500 V.

Features

  • The wire connection level is designed as a screw element
  • All screw connections are equipped with a wire protection spring
  • Screw connection
Technical specifications
Shell size 8
Pin number 24 pole
Version pin insert
Additional parts equipped
PE contact Yes
Contact connection screw connection
Logistics
Customs tariff number 85366990
Country of origin CN
Compliance
Substance description Lead, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
