1204100000 | Weidmüller
Socket contact insert, 4, 10 pole, equipped, screw connection, with PE contact, 1204100000
Unit Price (€ / pc.)
11.9238 € *
Available in 6 Days: 5 pcs. - if ordered today
Total Price:
11.92 € *
Price list
Quantity
Price per unit*
1 pcs.
11.9238 €
10 pcs.
10.9718 €
50 pcs.
9.9841 €
100 pcs.
8.9845 €
*incl. VAT plus shipping costs
Subject to prior sale

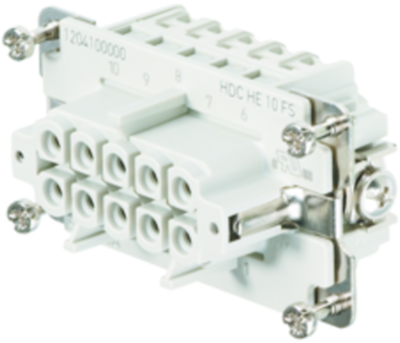

Contact insert, 1204100000, Weidmüller
The 1204100000 insert enables efficient signal transmission of up to 10 contacts at maximum 16 A and 500 V.
Features
- The wire connection level is designed for screw connections
- All screw connections are equipped with a wire protection spring
- Screw connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| PE contact | Yes | |
| Additional parts | equipped | |
| Shell size | 4 | |
| Version | socket insert | |
| Contact connection | screw connection | |
| Pin number | 10 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| Date of RoHS guidelines | 3/31/15 |
