9427370000 | Weidmüller
Current clamp 9427370000, 1000 A (DC), 1000 A (AC), 1000 V (DC), 1000 V (AC), opening 57 mm, CAT III 1000 V
Order No.: 53P6411
EAN: 4032248407019
MPN:
9427370000
MULTIMETER C 2606
Unit Price (€ / pc.)
348.8366 € *
Available in 6 Days: 5 pcs. - if ordered today

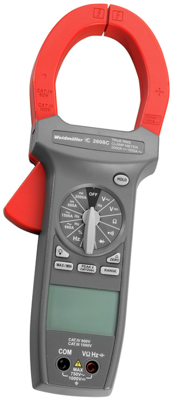

Clamp meter, 9427370000, Weidmüller
Digital current clamps and current clamp attachments and adapters are used to measure DC and AC currents. The significant advantage of these devices is that the measurement can be made without interrupting the flow of current
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Surge voltage category | CAT III 1000 V | |
| max. voltage measuring range (AC) | 1000 V | |
| max. measured value (frequency) | 400 kHz | |
| TRMS possible | No | |
| min. Measured value (frequency) | 0.1 kHz | |
| max. voltage measuring range (DC) | 1000 V | |
| Pliers opening | 57 mm | |
| max. measured current value (DC) | 1000 A | |
| Product type | current clamp | |
| max. resistance range | 40 MΩ | |
| max. measured current value (AC) | 1000 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303370 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
