2435210000 | Weidmüller
Cable gland, M63, 68/68 mm, Clamping range 34 to 44 mm, IP68, silver, 2435210000
Order No.: 53P1207
EAN: 4050118446968
MPN:
2435210000
VG M63 EMV-4 MS 34-44
Unit Price (€ / pc.)
100.9715 € *
Available: 0 pcs.
Leadtime: On Request **
Cable gland, 2435210000, Weidmüller

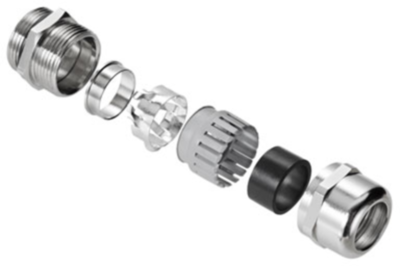

Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This type of EMC cable gland is made for shielding against interference frequencies, with a 360° screening connection.
Technical specifications
| Colour | silver | |
| Degree of protection (IP) | IP68 | |
| max. clamping range | 44 mm | |
| Length | 73 mm | |
| Product type | cable gland | |
| min. operating temperature | -20 °C | |
| Material | brass, nickel-plated | |
| spanner size | 68/68 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 34 mm | |
| Thread size | M63 |
Download
Logistics
| Country of origin | TR |
| Customs tariff number | 74198090 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
