2435190000 | Weidmüller
Cable gland, M40, 50/50 mm, Clamping range 22 to 32 mm, IP68, silver, 2435190000
Order No.: 53P1205
EAN: 4050118446944
MPN:
2435190000
VG M40 EMV-4 MS 22-32
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
48.6115 € *
Available in 6 Days: 25 pcs. - if ordered today

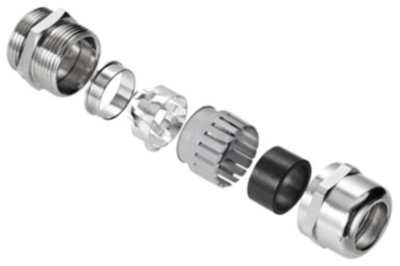

Cable gland, 2435190000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This type of EMC cable gland is made for shielding against interference frequencies, with a 360° screening connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | M40 | |
| min. clamping range | 22 mm | |
| max. clamping range | 32 mm | |
| spanner size | 50/50 mm | |
| Length | 69.5 mm | |
| Degree of protection (IP) | IP68 | |
| Material | brass, nickel-plated | |
| Colour | silver | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | TR |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
