2435170000 | Weidmüller
Cable gland, M25, 30/30 mm, Clamping range 10 to 18 mm, IP68, silver, 2435170000
Order No.: 53P1203
EAN: 4050118446920
MPN:
2435170000
VG M25 EMV-4 MS 10-18
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
22.491 € *
Available in 6 Days: 125 pcs. - if ordered today
Cable gland, 2435170000, Weidmüller

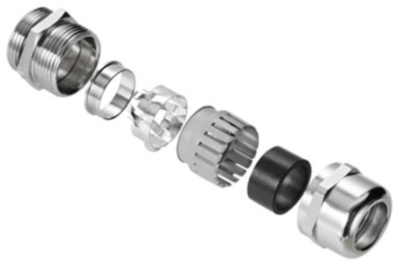

Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This type of EMC cable gland is made for shielding against interference frequencies, with a 360° screening connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | M25 | |
| min. clamping range | 10 mm | |
| max. clamping range | 18 mm | |
| spanner size | 30/30 mm | |
| Length | 51 mm | |
| Degree of protection (IP) | IP68 | |
| Material | brass, nickel-plated | |
| Colour | silver | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | TR |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
