2435150000 | Weidmüller
Cable gland, M20, 22/22 mm, Clamping range 6 to 12 mm, IP68, silver, 2435150000
Order No.: 53P1201
EAN: 4050118446906
MPN:
2435150000
VG M20 EMV-4 MS 6-12
Unit Price (€ / pc.)
20.6941 € *
Available in 6 Days: 250 pcs. - if ordered today

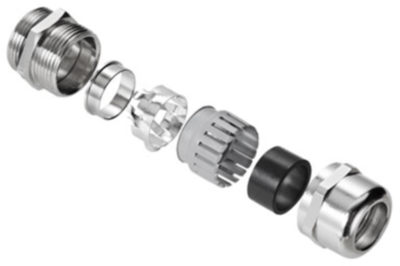

Cable gland, 2435150000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This type of EMC cable gland is made for shielding against interference frequencies, with a 360° screening connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | M20 | |
| min. clamping range | 6 mm | |
| max. clamping range | 12 mm | |
| spanner size | 22/22 mm | |
| Length | 38 mm | |
| Degree of protection (IP) | IP68 | |
| Material | brass, nickel-plated | |
| Colour | silver | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | TR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
