1921760000 | Weidmüller
Cable gland, M32, 32 mm, Clamping range 16 to 25 mm, IP65, silver, 1921760000
Order No.: 52P6015
EAN: 4032248563029
MPN:
1921760000
VG H M32 MS
Unit Price (€ / pc.)
5.117 € *
Standard delivery time from the manufacturer is: On Request

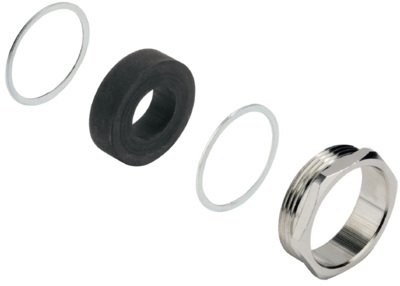

Cable gland, 1921760000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Colour | silver | |
| Degree of protection (IP) | IP65 | |
| max. clamping range | 25 mm | |
| Product type | cable gland | |
| min. operating temperature | -20 °C | |
| Material | brass, nickel-plated | |
| spanner size | 32 mm | |
| max. operating temperature | 60 °C | |
| min. clamping range | 16 mm | |
| Thread size | M32 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
