1909910000 | Weidmüller
Cable gland, M16, 22/22 mm, Clamping range 5 to 10 mm, IP68, silver, 1909910000
Order No.: 52P5726
EAN: 4032248536832
MPN:
1909910000
VG M16-1/MS68
Unit Price (€ / pc.)
4.046 € *
Available in 6 Days: 250 pcs. - if ordered today

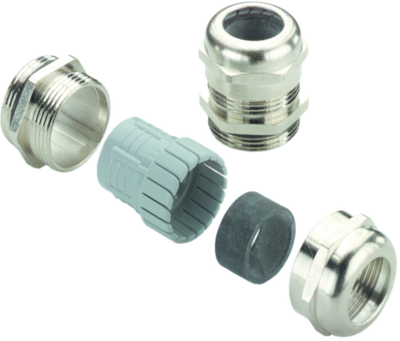

Cable gland, 1909910000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. clamping range | 10 mm | |
| min. clamping range | 5 mm | |
| Colour | silver | |
| spanner size | 22/22 mm | |
| Degree of protection (IP) | IP68 | |
| Thread size | M16 | |
| Material | brass, nickel-plated | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -40 °C | |
| Product type | cable gland | |
| Length | 35.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | TR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
