1909870000 | Weidmüller
Cable gland, M25, 29/29 mm, Clamping range 11 to 17 mm, IP68, gray, 1909870000
Order No.: 52P5723
EAN: 4032248536795
MPN:
1909870000
VG M25-1/K68
Unit Price (€ / pc.)
1.4518 € *
Standard delivery time from the manufacturer is: 2 Weeks

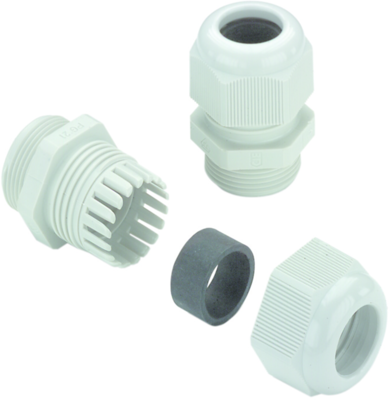

Cable gland, 1909870000, Weidmüller
Plastic cable gland for reliable sealing of cables with strain relief. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. clamping range | 11 mm | |
| Length | 43 mm | |
| Degree of protection (IP) | IP68 | |
| Material | PA | |
| max. clamping range | 17 mm | |
| spanner size | 29/29 mm | |
| max. operating temperature | 100 °C | |
| Product type | cable gland | |
| min. operating temperature | -40 °C | |
| Colour | gray | |
| Thread size | M25 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TR |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
