1909780000 | Weidmüller

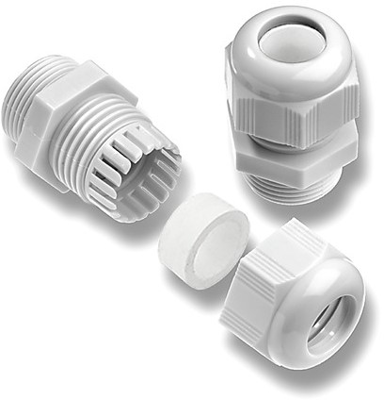

Cable gland, PG11, 22 mm, Clamping range 5 to 10 mm, IP67, gray, 1909780000
Order No.: 52P5714
EAN: 4032248536702
MPN:
1909780000
VG PG11-K67
Unit Price (€ / pc.)
0.7259 € *
Standard delivery time from the manufacturer is: 3 Weeks
Cable gland, 1909780000, Weidmüller
Plastic cable gland for reliable sealing of cables with strain relief. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 22 mm | |
| max. clamping range | 10 mm | |
| max. operating temperature | 100 °C | |
| Colour | gray | |
| Product type | cable gland | |
| Degree of protection (IP) | IP67 | |
| min. operating temperature | -20 °C | |
| min. clamping range | 5 mm | |
| Thread size | PG11 | |
| Material | PA | |
| Length | 37 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TR |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
