1909710000 | Weidmüller
Cable gland, M25, 33 mm, Clamping range 13 to 18 mm, IP67, gray, 1909710000
Order No.: 52P5707
EAN: 4032248536634
MPN:
1909710000
VG M25-K67
Unit Price (€ / pc.)
1.2733 € *
Available in 6 Days: 125 pcs. - if ordered today

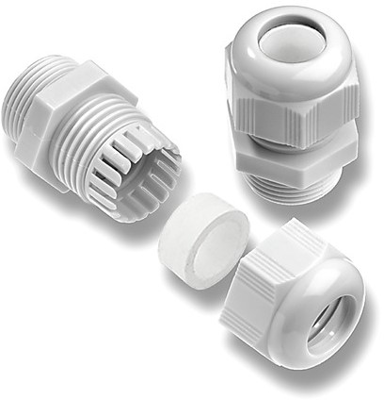

Cable gland, 1909710000, Weidmüller
Plastic cable gland for reliable sealing of cables with strain relief. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | M25 | |
| min. clamping range | 13 mm | |
| max. clamping range | 18 mm | |
| spanner size | 33 mm | |
| Length | 47 mm | |
| Degree of protection (IP) | IP67 | |
| Material | PA | |
| Colour | gray | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | TR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
