1909690000 | Weidmüller
Cable gland, M20, 24 mm, Clamping range 6 to 12 mm, IP67, gray, 1909690000
Order No.: 52P5705
EAN: 4032248536610
MPN:
1909690000
VG M20-K67 6-12
Unit Price (€ / pc.)
0.9877 € *
Available in 6 Days: 250 pcs. - if ordered today

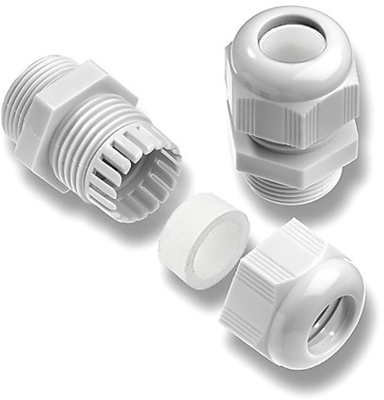

Cable gland, 1909690000, Weidmüller
Plastic cable gland for reliable sealing of cables with strain relief. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. clamping range | 6 mm | |
| max. operating temperature | 100 °C | |
| Material | PA | |
| min. operating temperature | -20 °C | |
| Colour | gray | |
| spanner size | 24 mm | |
| Thread size | M20 | |
| Degree of protection (IP) | IP67 | |
| max. clamping range | 12 mm | |
| Product type | cable gland | |
| Length | 39.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TR |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
