1909670000 | Weidmüller
Cable gland, M16, 19 mm, Clamping range 4 to 8 mm, IP67, gray, 1909670000
Order No.: 52P5703
EAN: 4032248536597
MPN:
1909670000
VG M16-K67 4-8
Unit Price (€ / pc.)
0.833 € *
Standard delivery time from the manufacturer is: 2 Weeks

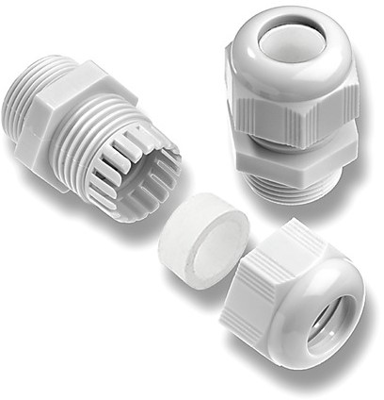

Cable gland, 1909670000, Weidmüller
Plastic cable gland for reliable sealing of cables with strain relief. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. clamping range | 8 mm | |
| min. clamping range | 4 mm | |
| Colour | gray | |
| spanner size | 19 mm | |
| Degree of protection (IP) | IP67 | |
| Thread size | M16 | |
| Material | PA | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -20 °C | |
| Product type | cable gland | |
| Length | 34.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | TR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
