1909560000 | Weidmüller
Cable gland, M63, 64/68 mm, Clamping range 34 to 44 mm, IP68, silver, 1909560000
Order No.: 52P5701
EAN: 4032248536481
MPN:
1909560000
VG M63 - MS 1/EMV
Unit Price (€ / pc.)
99.3055 € *
Standard delivery time from the manufacturer is: 3 Weeks
Cable gland, 1909560000, Weidmüller

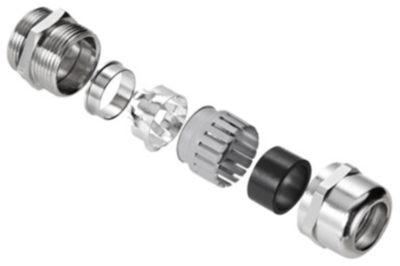

Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This type of EMC cable gland is made for shielding against interference frequencies, with a 360° screening connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | M63 | |
| min. clamping range | 34 mm | |
| max. clamping range | 44 mm | |
| spanner size | 64/68 mm | |
| Length | 71 mm | |
| Degree of protection (IP) | IP68 | |
| Material | brass, nickel-plated | |
| Colour | silver | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | TR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
