1909530000 | Weidmüller
Cable gland, M32, 34 mm, Clamping range 15 to 21 mm, IP68, silver, 1909530000
Order No.: 52P5698
EAN: 4032248536450
MPN:
1909530000
VG M32 - MS 1/EMV
Unit Price (€ / pc.)
24.0737 € *
Standard delivery time from the manufacturer is: 4 Weeks

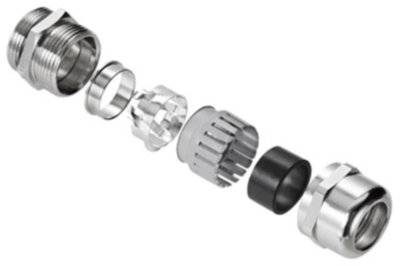

Cable gland, 1909530000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This type of EMC cable gland is made for shielding against interference frequencies, with a 360° screening connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | M32 | |
| min. clamping range | 15 mm | |
| max. clamping range | 21 mm | |
| spanner size | 34 mm | |
| Length | 46 mm | |
| Degree of protection (IP) | IP68 | |
| Material | brass, nickel-plated | |
| Colour | silver | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | TR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
