1909420000 | Weidmüller

Cable gland, M25, 38 mm, Clamping range 13.5 to 20 mm, IP68, silver, 1909420000

Order No.: 52P5687
EAN: 4032248536344
MPN:
1909420000
KSG M25 BN O SC 2 G25
Series: KSG
1909420000 Weidmüller Cable Glands
Image may differ
Unit Price (€ / pc.)
11.8762 € *
Available in 5 Days: 20 pcs. - if ordered today
Total Price:
237.52 € *
*incl. VAT plus shipping costs
Subject to prior sale
20 pcs.
11.8762 €

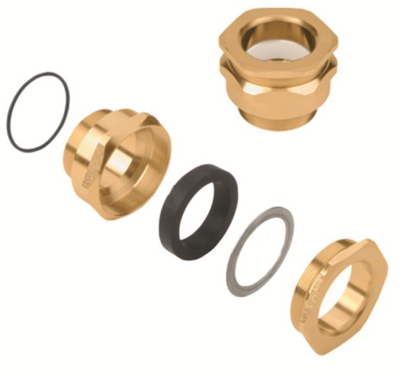

Cable gland, 1909420000, Weidmüller

Cable gland for use in hazardous areas. It is suitable for armored and non-armored cables, for use in Ex e (increased safety) and Ex d (flameproof enclosure) applications.

Technical specifications
max. operating temperature 85 °C
max. clamping range 20 mm
Length 33 mm
min. clamping range 13.5 mm
Colour silver
Material brass, nickel-plated
Thread size M25
min. operating temperature -20 °C
spanner size 38 mm
Degree of protection (IP) IP68
Product type cable gland
Logistics
Customs tariff number 85369010
Country of origin GB
Compliance
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
