1778520000 | Weidmüller

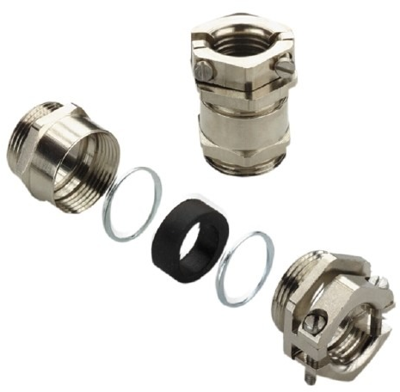

Cable gland, M50, 62/57 mm, Clamping range 29 to 39 mm, IP54, silver, 1778520000
Order No.: 52P1138
EAN: 4032248161539
MPN:
1778520000
VGM50-MS54 ZE
Unit Price (€ / pc.)
98.2226 € *
Standard delivery time from the manufacturer is: On Request
Cable gland, 1778520000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Colour | silver | |
| Degree of protection (IP) | IP54 | |
| max. clamping range | 39 mm | |
| Length | 52 mm | |
| Product type | cable gland | |
| min. operating temperature | -20 °C | |
| Material | brass, nickel-plated | |
| spanner size | 62/57 mm | |
| max. operating temperature | 80 °C | |
| min. clamping range | 29 mm | |
| Thread size | M50 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
