1776720000 | Weidmüller
Cable gland, with bend protection, M20, 27 mm, Clamping range 10 to 14 mm, IP68, light gray, 1776720000
Order No.: 52P1089
EAN: 4032248156146
MPN:
1776720000
VG M20-K68 SKS 10-14
Unit Price (€ / pc.)
3.0226 € *
Available: 0 pcs.
Leadtime: On Request **

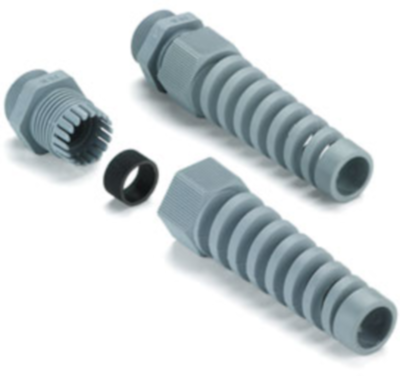

Cable gland, 1776720000, Weidmüller
Plastic cable gland for reliable sealing of cables with strain relief. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Colour | light gray | |
| Degree of protection (IP) | IP68 | |
| max. clamping range | 14 mm | |
| Length | 116 mm | |
| Product type | cable gland | |
| Version | with bend protection | |
| min. operating temperature | -20 °C | |
| Material | PA | |
| spanner size | 27 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 10 mm | |
| Thread size | M20 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
