1772250000 | Weidmüller
Cable gland, M40, 40/43 mm, Clamping range 18 to 25 mm, IP68, silver, 1772250000
Order No.: 52P0888
EAN: 4032248129904
MPN:
1772250000
VG M40 - MS 68
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
24.9424 € *
Standard delivery time from the manufacturer is: 4 Weeks
Cable gland, 1772250000, Weidmüller

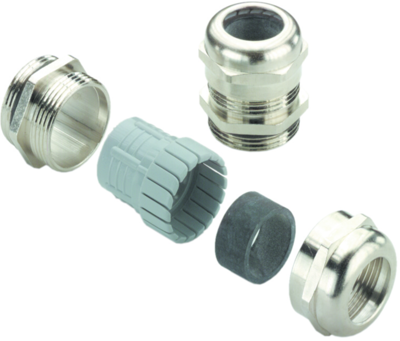

Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | M40 | |
| min. clamping range | 18 mm | |
| max. clamping range | 25 mm | |
| spanner size | 40/43 mm | |
| Length | 47 mm | |
| Degree of protection (IP) | IP68 | |
| Material | brass, nickel-plated | |
| Colour | silver | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | TR |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
