1772200000 | Weidmüller
Cable gland, M12, 14/14 mm, Clamping range 3 to 6.5 mm, IP68, silver, 1772200000
Order No.: 52P0883
EAN: 4032248129850
MPN:
1772200000
VG M12 - MS 68
Unit Price (€ / pc.)
3.7247 € *
Standard delivery time from the manufacturer is: 1 Week

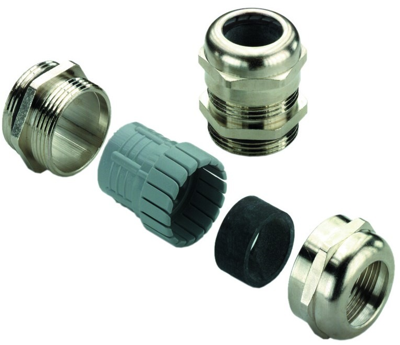

Cable gland, 1772200000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 100 °C | |
| Product type | cable gland | |
| Material | brass, nickel-plated | |
| Length | 28 mm | |
| Degree of protection (IP) | IP68 | |
| min. operating temperature | -40 °C | |
| Thread size | M12 | |
| spanner size | 14/14 mm | |
| Colour | silver | |
| max. clamping range | 6.5 mm | |
| min. clamping range | 3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TR |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
