1720500000 | Weidmüller
Cable gland, with bend protection, PG13.5, 24 mm, Clamping range 6 to 12 mm, IP68, light gray, 1720500000
Order No.: 51P9675
EAN: 4008190358716
MPN:
1720500000
VG 13.5-K68 SKS
Unit Price (€ / pc.)
2.4395 € *
Standard delivery time from the manufacturer is: On Request

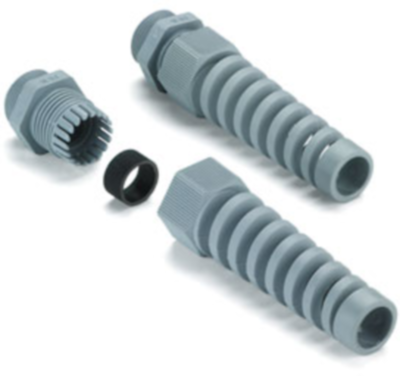

Cable gland, 1720500000, Weidmüller
Plastic cable gland for reliable sealing of cables with strain relief. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Colour | light gray | |
| Degree of protection (IP) | IP68 | |
| max. clamping range | 12 mm | |
| Length | 98 mm | |
| Product type | cable gland | |
| Version | with bend protection | |
| min. operating temperature | -20 °C | |
| Material | PA | |
| spanner size | 24 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 6 mm | |
| Thread size | PG13.5 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
