1718850000 | Weidmüller
Cable gland, PG21, 30/34 mm, Clamping range 12 to 21 mm, IP54, silver, 1718850000
Order No.: 51P9594
EAN: 4008190352073
MPN:
1718850000
VG 21-MS54-ZE
Unit Price (€ / pc.)
14.2205 € *
Available: 0 pcs.
Leadtime: On Request **

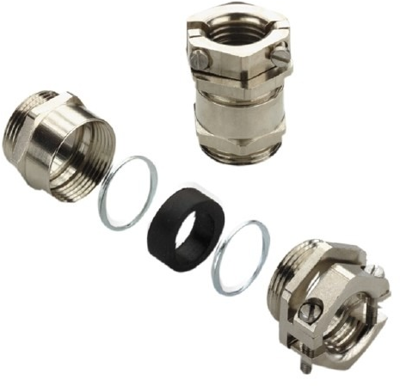

Cable gland, 1718850000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Colour | silver | |
| Degree of protection (IP) | IP54 | |
| max. clamping range | 21 mm | |
| Length | 38 mm | |
| Product type | cable gland | |
| min. operating temperature | -20 °C | |
| Material | brass, nickel-plated | |
| spanner size | 30/34 mm | |
| max. operating temperature | 80 °C | |
| min. clamping range | 12 mm | |
| Thread size | PG21 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
