1718820000 | Weidmüller
Cable gland, PG11, 20/22 mm, Clamping range 7.5 to 12 mm, IP54, silver, 1718820000
Order No.: 51P9591
EAN: 4008190352042
MPN:
1718820000
VG 11-MS54-ZE
Unit Price (€ / pc.)
8.9607 € *
Standard delivery time from the manufacturer is: On Request

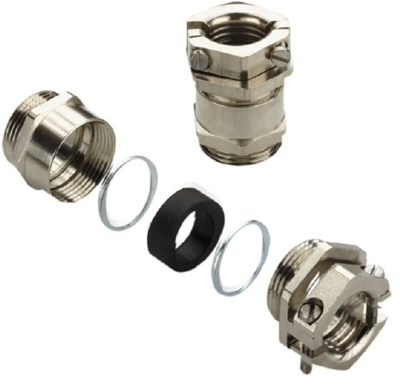

Cable gland, 1718820000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Colour | silver | |
| Degree of protection (IP) | IP54 | |
| max. clamping range | 12 mm | |
| Length | 31.5 mm | |
| Product type | cable gland | |
| min. operating temperature | -20 °C | |
| Material | brass, nickel-plated | |
| spanner size | 20/22 mm | |
| max. operating temperature | 80 °C | |
| min. clamping range | 7.5 mm | |
| Thread size | PG11 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
