1569140000 | Weidmüller
Cable gland, PG42, 58/58 mm, Clamping range 30 to 38 mm, IP68, silver, 1569140000
Order No.: 51P6921
EAN: 4008190010515
MPN:
1569140000
VG 42-MS68
Unit Price (€ / pc.)
51.8959 € *
Available: 0 pcs.
Leadtime: On Request **

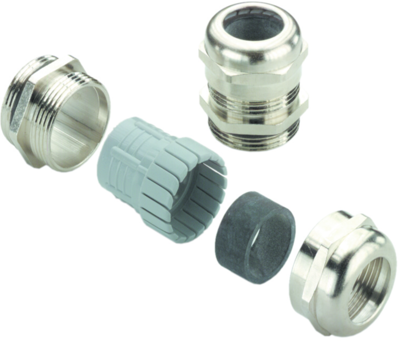

Cable gland, 1569140000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Colour | silver | |
| Degree of protection (IP) | IP68 | |
| max. clamping range | 38 mm | |
| Length | 60.5 mm | |
| Product type | cable gland | |
| min. operating temperature | -40 °C | |
| Material | brass, nickel-plated | |
| spanner size | 58/58 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 30 mm | |
| Thread size | PG42 |
Download
Logistics
| Country of origin | TR |
| Customs tariff number | 74198090 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
