1569130000 | Weidmüller
Cable gland, PG36, 50/50 mm, Clamping range 22 to 32 mm, IP68, silver, 1569130000
Order No.: 51P6920
EAN: 4008190148263
MPN:
1569130000
VG 36-MS68
Unit Price (€ / pc.)
28.5005 € *
Standard delivery time from the manufacturer is: 2 Weeks

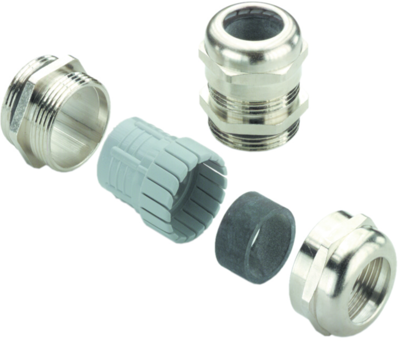

Cable gland, 1569130000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 50/50 mm | |
| min. clamping range | 22 mm | |
| Product type | cable gland | |
| max. operating temperature | 100 °C | |
| Material | brass, nickel-plated | |
| max. clamping range | 32 mm | |
| Length | 57 mm | |
| min. operating temperature | -40 °C | |
| Degree of protection (IP) | IP68 | |
| Thread size | PG36 | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | TR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
