1569110000 | Weidmüller
Cable gland, PG21, 30/30 mm, Clamping range 13 to 18 mm, IP68, silver, 1569110000
Order No.: 51P6918
EAN: 4008190168469
MPN:
1569110000
VG 21-MS68
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
9.8413 € *
Available in 6 Days: 125 pcs. - if ordered today

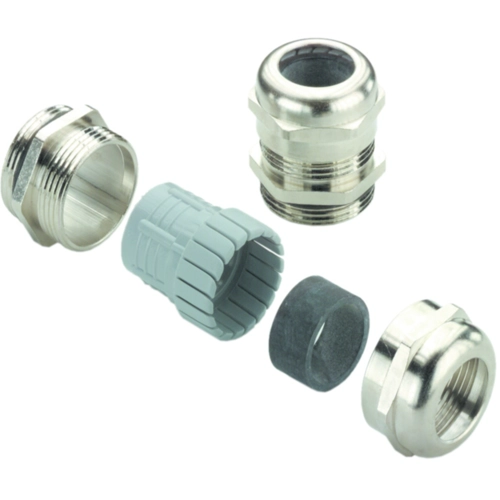

Cable gland, 1569110000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | PG21 | |
| min. clamping range | 13 mm | |
| max. clamping range | 18 mm | |
| spanner size | 30/30 mm | |
| Length | 39.7 mm | |
| Degree of protection (IP) | IP68 | |
| Material | brass, nickel-plated | |
| Colour | silver | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | TR |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
