1569070000 | Weidmüller

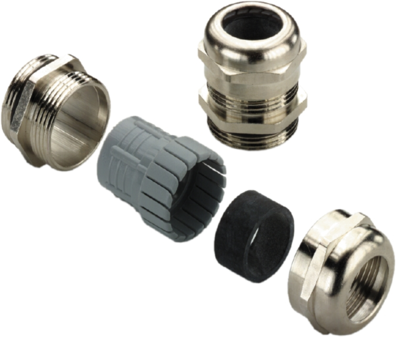

Cable gland, PG9, 17/17 mm, Clamping range 4 to 8 mm, IP68, silver, 1569070000
Order No.: 51P6914
EAN: 4008190116262
MPN:
1569070000
VG 9-MS68
Unit Price (€ / pc.)
4.4625 € *
Standard delivery time from the manufacturer is: 2 Weeks
Cable gland, 1569070000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. clamping range | 8 mm | |
| min. clamping range | 4 mm | |
| Colour | silver | |
| spanner size | 17/17 mm | |
| Degree of protection (IP) | IP68 | |
| Thread size | PG9 | |
| Material | brass, nickel-plated | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -40 °C | |
| Product type | cable gland | |
| Length | 29.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | TR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
