1463730000 | Weidmüller
Cable gland, M32, 36 mm, Clamping range 15 to 25 mm, IP68, silver, 1463730000
Order No.: 51P3911
EAN: 4050118269888
MPN:
1463730000
VGM32-MS68 EMC 15-25SET
Unit Price (€ / pc.)
33.1177 € *
Available in 6 Days: 5 pcs. - if ordered today

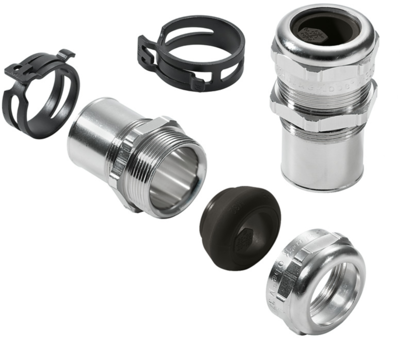

Cable gland, 1463730000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This type of EMC cable gland is made for shielding against interference frequencies, with a 360° screening connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | M32 | |
| min. clamping range | 15 mm | |
| max. clamping range | 25 mm | |
| spanner size | 36 mm | |
| Length | 66.5 mm | |
| Degree of protection (IP) | IP68 | |
| Material | brass, nickel-plated | |
| Colour | silver | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 130 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 73269098 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
