1463720000 | Weidmüller
Cable gland, M25, 30 mm, Clamping range 11 to 20 mm, IP68, silver, 1463720000
Order No.: 51P3910
EAN: 4050118269871
MPN:
1463720000
VGM25-MS68 EMC 11-20SET
Unit Price (€ / pc.)
23.0622 € *
Available in 6 Days: 5 pcs. - if ordered today

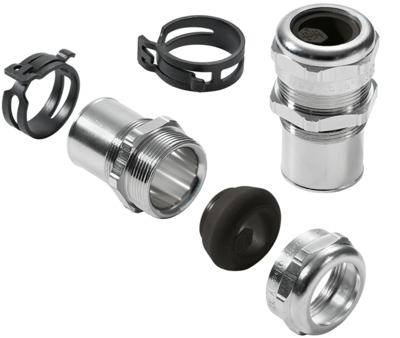

Cable gland, 1463720000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This type of EMC cable gland is made for shielding against interference frequencies, with a 360° screening connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. clamping range | 20 mm | |
| min. clamping range | 11 mm | |
| Colour | silver | |
| spanner size | 30 mm | |
| Degree of protection (IP) | IP68 | |
| Thread size | M25 | |
| Material | brass, nickel-plated | |
| max. operating temperature | 130 °C | |
| min. operating temperature | -40 °C | |
| Product type | cable gland | |
| Length | 63.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 73269098 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
