1205890000 | Weidmüller
Cable gland, M40, 45 mm, Clamping range 20 to 32 mm, IP68, silver, 1205890000
Order No.: 50P8709
EAN: 4032248987818
MPN:
1205890000
VGM40/1-MS68 20-32 BG
Unit Price (€ / pc.)
43.1613 € *
Standard delivery time from the manufacturer is: 4 Weeks
Cable gland, 1205890000, Weidmüller

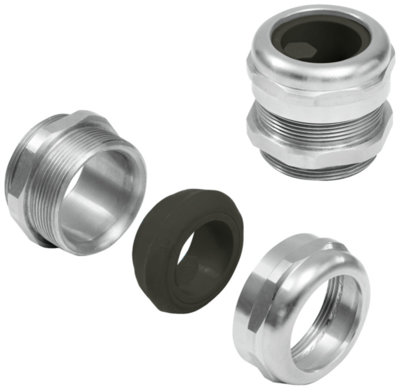

Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 45 mm | |
| max. clamping range | 32 mm | |
| max. operating temperature | 130 °C | |
| Colour | silver | |
| Product type | cable gland | |
| Degree of protection (IP) | IP68 | |
| min. operating temperature | -40 °C | |
| min. clamping range | 20 mm | |
| Thread size | M40 | |
| Material | brass, nickel-plated | |
| Length | 82 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74122000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
